Intelligent energy storage + peak shaving and valley filling, saving 30% of annual electricity bills.
Based on wholesale time-of-use electricity prices in Germany (June 2025), the difference between peak and off-peak prices is approximately 0.238 euros per kWh. For a system with a total cost of approximately 32,600 euros, the net income from peak-valley arbitrage can reach 7,447 euros per year, resulting in a static payback period of approximately 4.4 years.
| Project Item | Unit | Numerical Value |
|---|---|---|
| Power Output | kW | 50 |
| System Capacity | kWh | 100 |
| Construction Cost | €/wh | 0.326 |
| Total Investment | € | 32,609 |
| Annual Electricity Savings | €/year | 8,099 |
| Annual Net Income | €/year | 7,447 |
| Static Payback Period | Year | 4.4 |
Charge during low-cost valley periods and discharge during high-cost peak periods to cut expenses.
Functions as a reliable backup power source during grid outages for industrial facilities.
Mitigates fluctuations and ensures stable operation of electrical equipment.

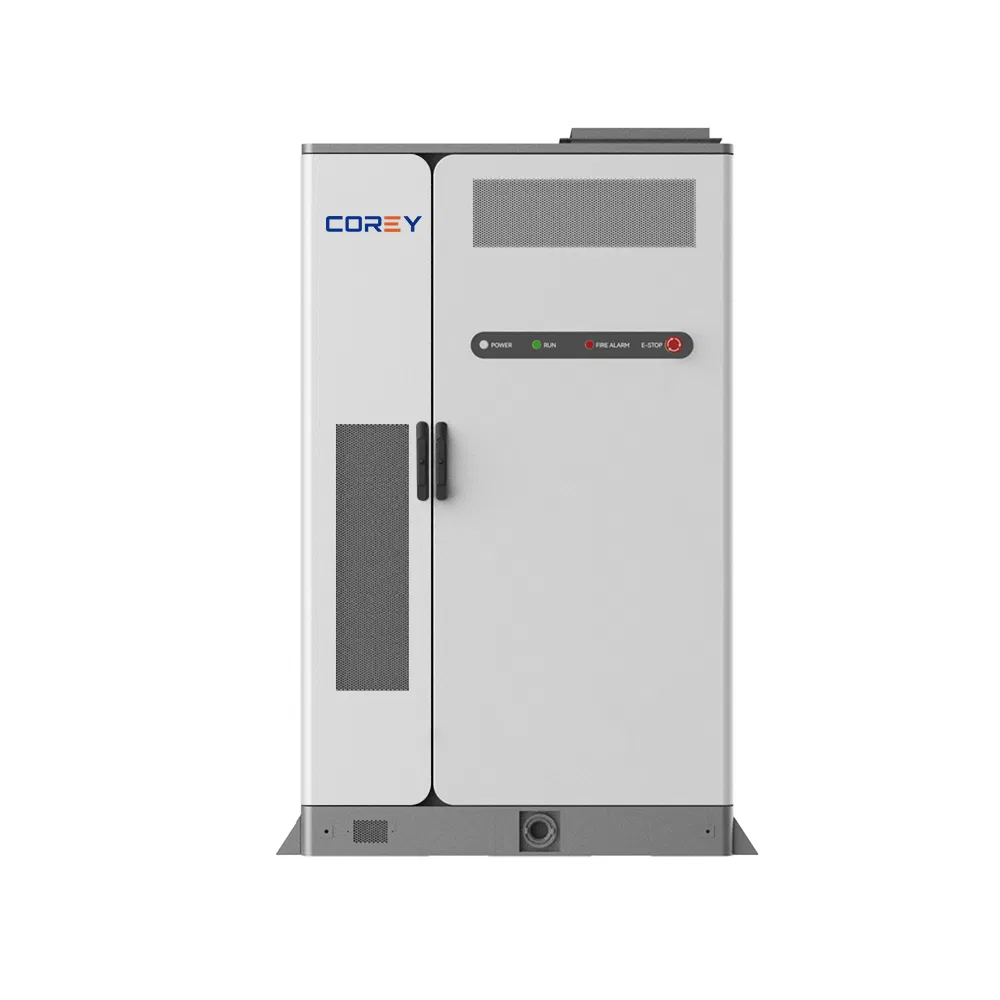

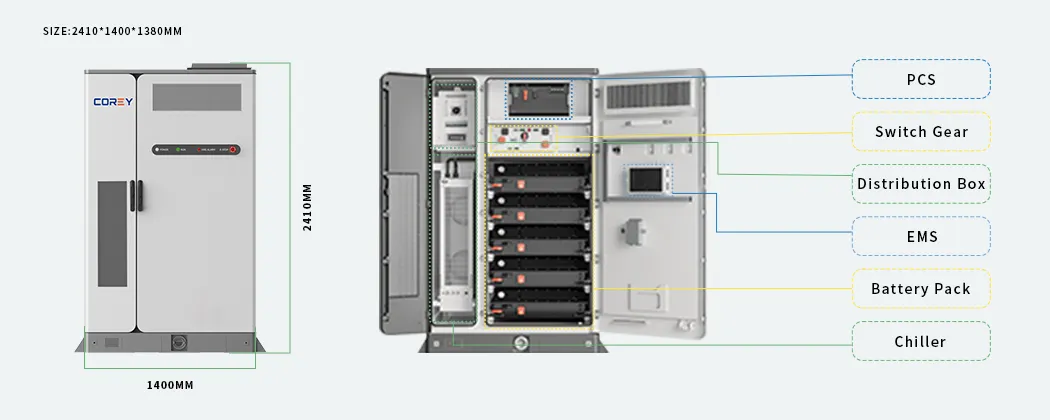

The industrial storage cabinet system utilizes a multi-stage protection design of battery packs and clusters to effectively isolate faults. The three-tier intelligent fire safety design minimizes risks, ensuring maximum safety for personnel and assets.
| System Parameter | Details | |
|---|---|---|
| Battery Cell | LFP (LiFePO4) 3.2V 280Ah | |
| Rated Power | 105kW | |
| Communication | CAN / RS485 / Ethernet / 4G | |
| Fire Fighting | Aerosol (Pack + Cluster) + Water (Cabinet) | |
| Operating Temp | -20ºC to 50ºC (Discharge) | |
| Anti-corrosion | C4 Level | |
| AC Side | Specifications | |
| Rated Voltage | 230V/400V (±15%) | |
| Rated Frequency | 50/60 Hz | |
| Maximum Current | 167A | |
| Switching Time | 20ms (Optional) | |

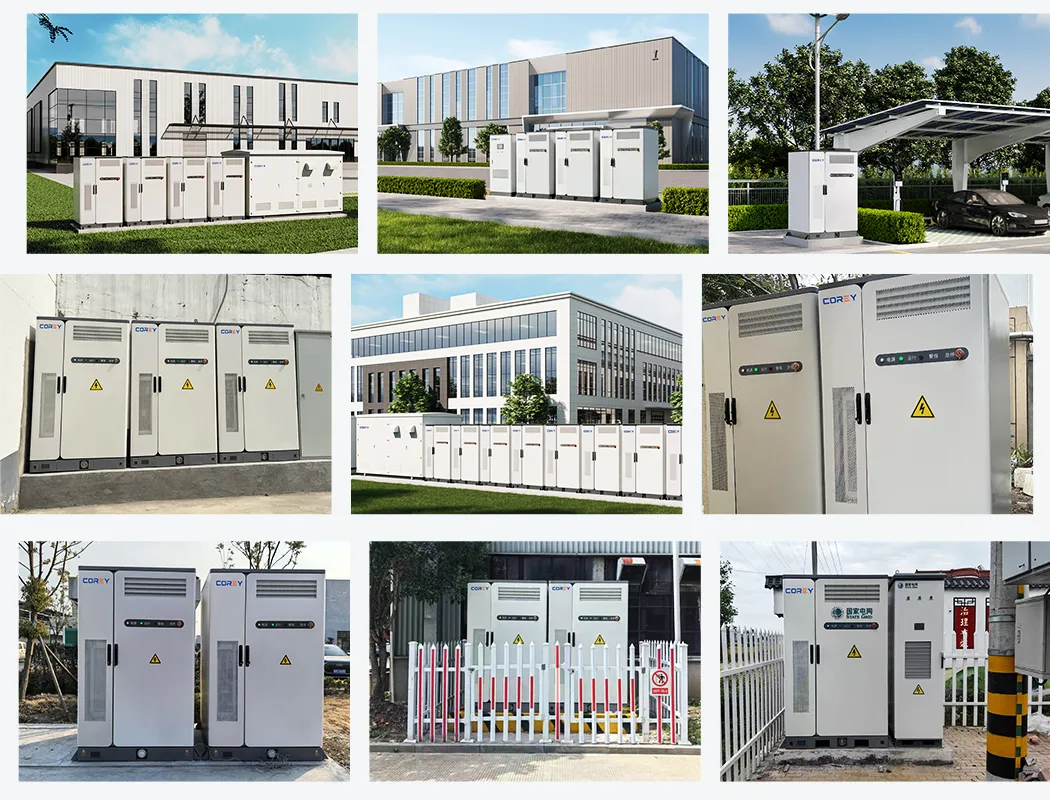

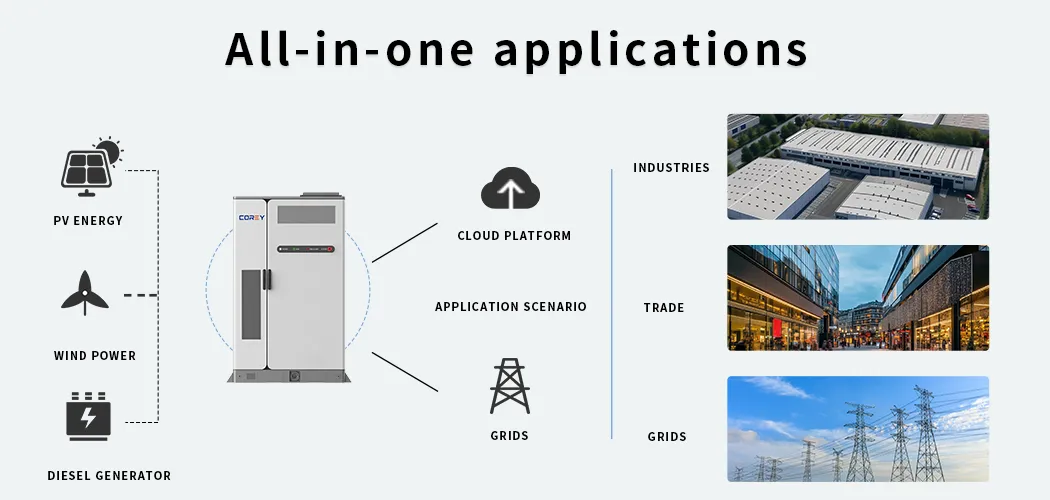

Ideal for commercial buildings, factory complexes, remote areas, and regions experiencing power shortages.
We provide one-stop green power station solutions including Turnkey Services, Microgrid Solutions, and Energy Storage Projects. Our mission is to promote clean energy transformation and help build zero-carbon power systems that are stable, safe, and efficient.
