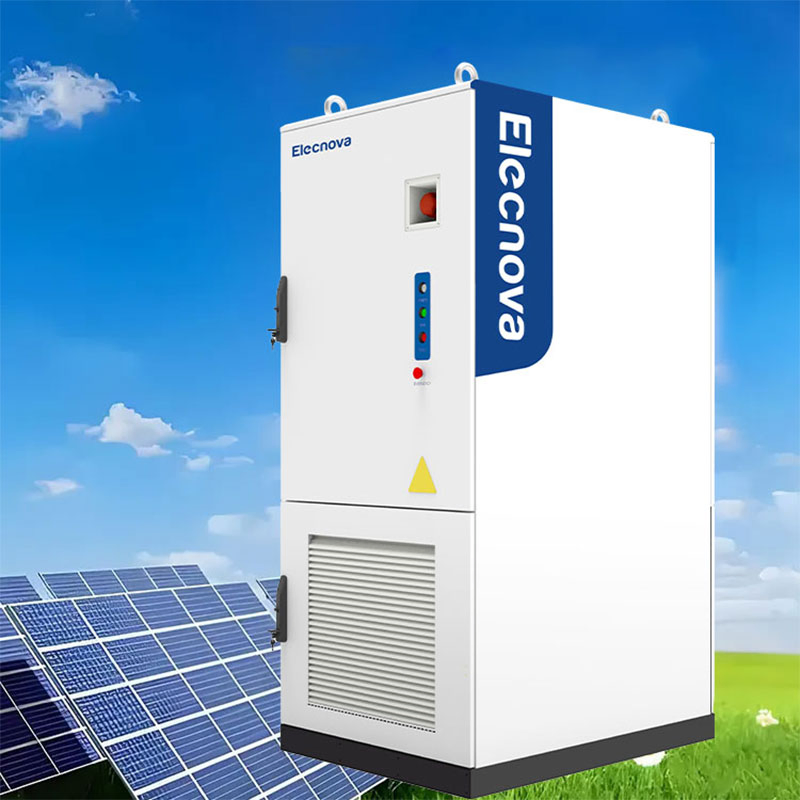

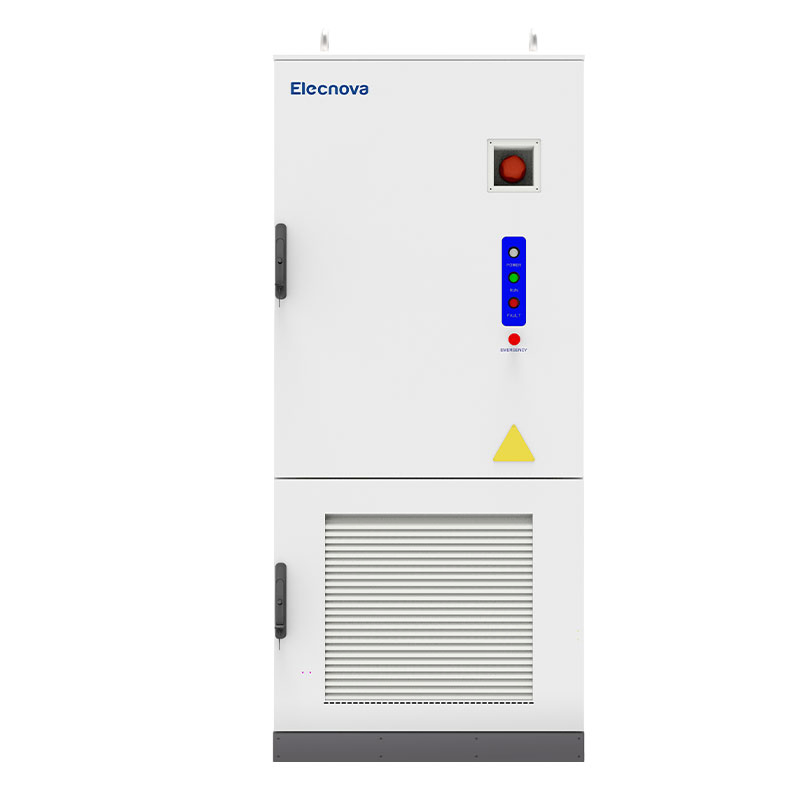

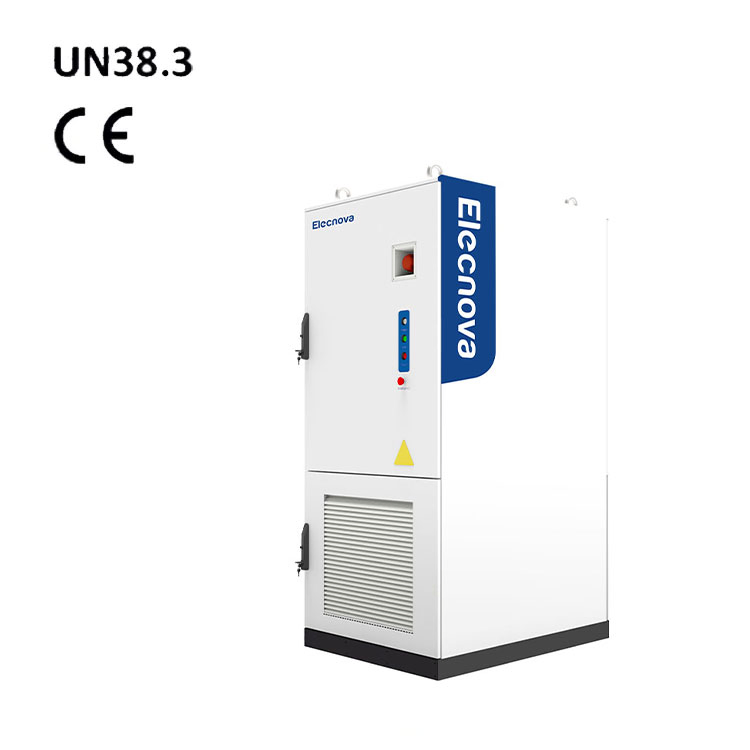

C&I Application Battery Energy Storage for PV Solar Peak Shaving
C&I Application Battery Energy Storage for PV Solar Peak Shaving
C&I Application Battery Energy Storage for PV Solar Peak Shaving
C&I Application Battery Energy Storage for PV Solar Peak Shaving
C&I Application Battery Energy Storage for PV Solar Peak Shaving
1 / 5
C&I Application Battery Energy Storage for PV Solar Peak Shaving
C&I Application Battery Energy Storage for PV Solar Peak Shaving
C&I Application Battery Energy Storage for PV Solar Peak Shaving
C&I Application Battery Energy Storage for PV Solar Peak Shaving
C&I Application Battery Energy Storage for PV Solar Peak Shaving

C&I Application Battery Energy Storage for PV Solar Peak Shaving

Customization: Available
Nominal Voltage: 728~936V DC
Warranty: 2 Years
Send Inquiry

Product Description

Basic Info.

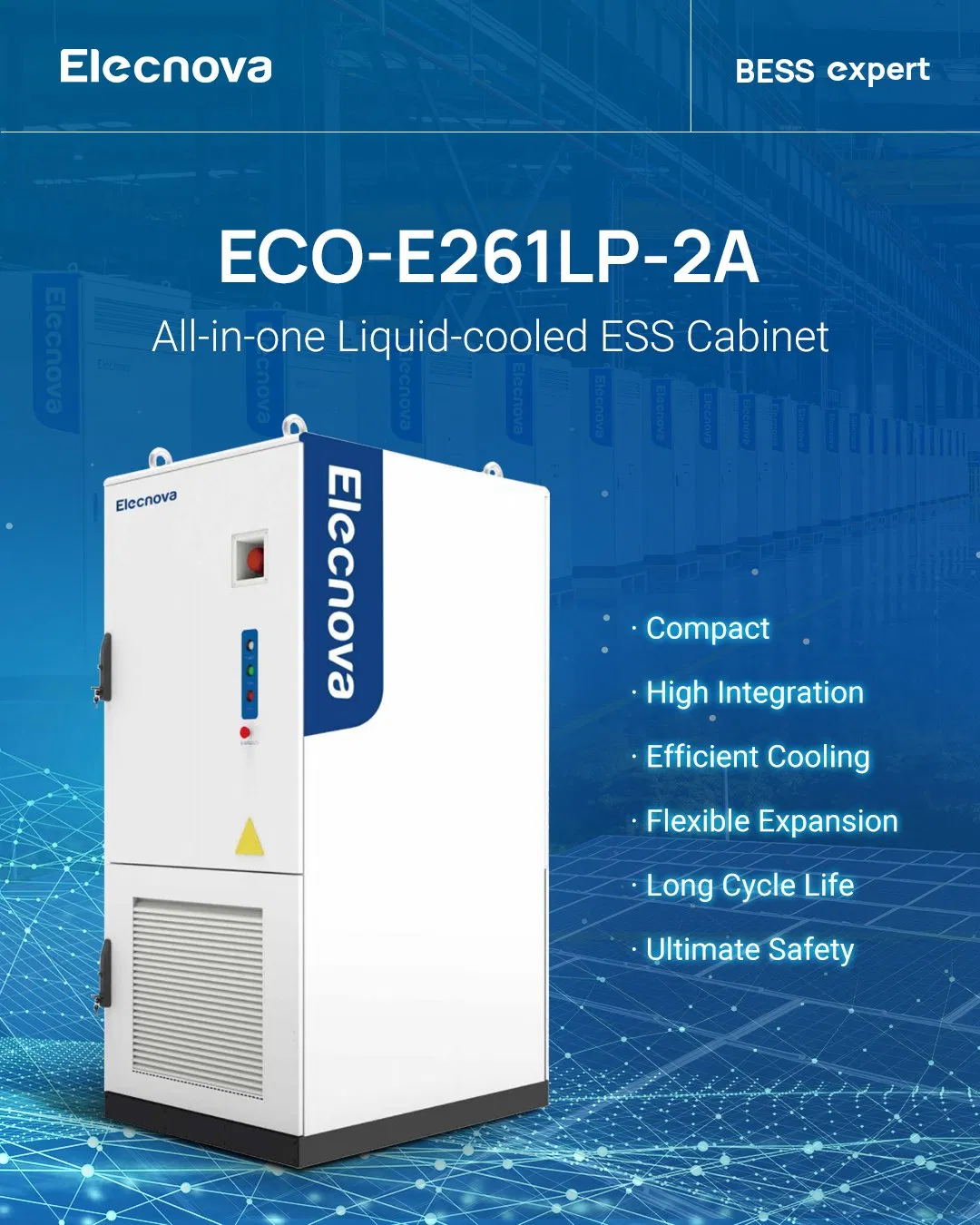

Model NO.
ECO-E261LP-2A
Nominal Capacity
100kw
Cycle Life
>8, 000 Times
Battery Cell Type
LFP 3.2V/280ah
Battery Pack Configuration
46.59kwh/1p52s
Battery System Configuration
232kwh/1p260s
Pack Voltage Range
728~936V DC
Battery Pack Protection Level
IP65
AC Rated Power
116kw
AC Maximum Power
128kw (Continuous for 1min)
AC Current Distortion Rate
<3%
DC Component
<0.5%Ipn
Grid Rated Voltage
400V AC
Adjustable Power Factor Range
-1~1
Rated Grid Frequency
50Hz
Discharge Depth
95%Dod
Charge/Discharge Switching Time
<100ms
Communication Interface
Ethernet /RS485
Specification
1300*1300*2350 (mm)
Origin
China
Product Description
Energy Storage Application

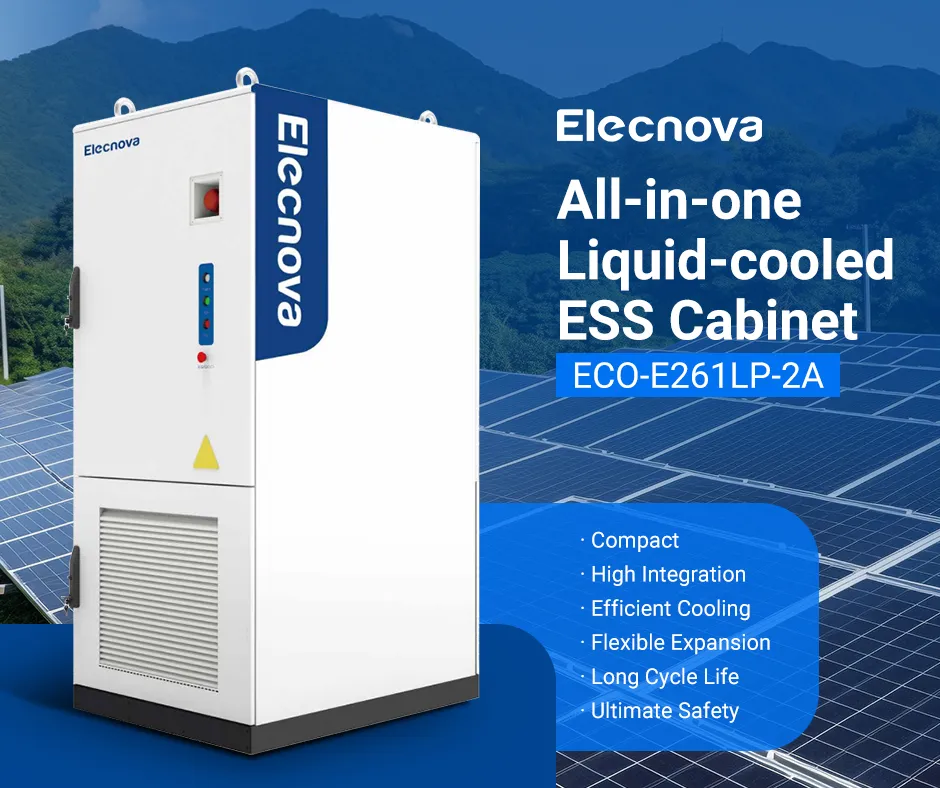

Peak Shaving Battery Storage
Product Parameters
Cell TypeLFP314Ah
PACK52.248kWh/1P52S
Battery System261.24kWh/1P260S
Voltage Range728~936Vdc
PACK Ingress RatingIP65
Rated Power125kW
Max. Power137kW
THDi≤3%
DC Ratio<0.5%Ipn
Nominal Voltage400Vac/3P+N+PE
Power Factor0.98 lagging~0.98 leading
Efficiency≥90%
Charge/Discharge Rate0.5P
Cycle Life≥8,000 cycles
CoolingActive liquid cooling
Dimensions (W*D*H)1,050*1,350*2,400 (mm)
ComplianceUN38.3, IEC62477, IEC61000, IEC62619, IEC63056, UL9540A, EN50549
Company Profile

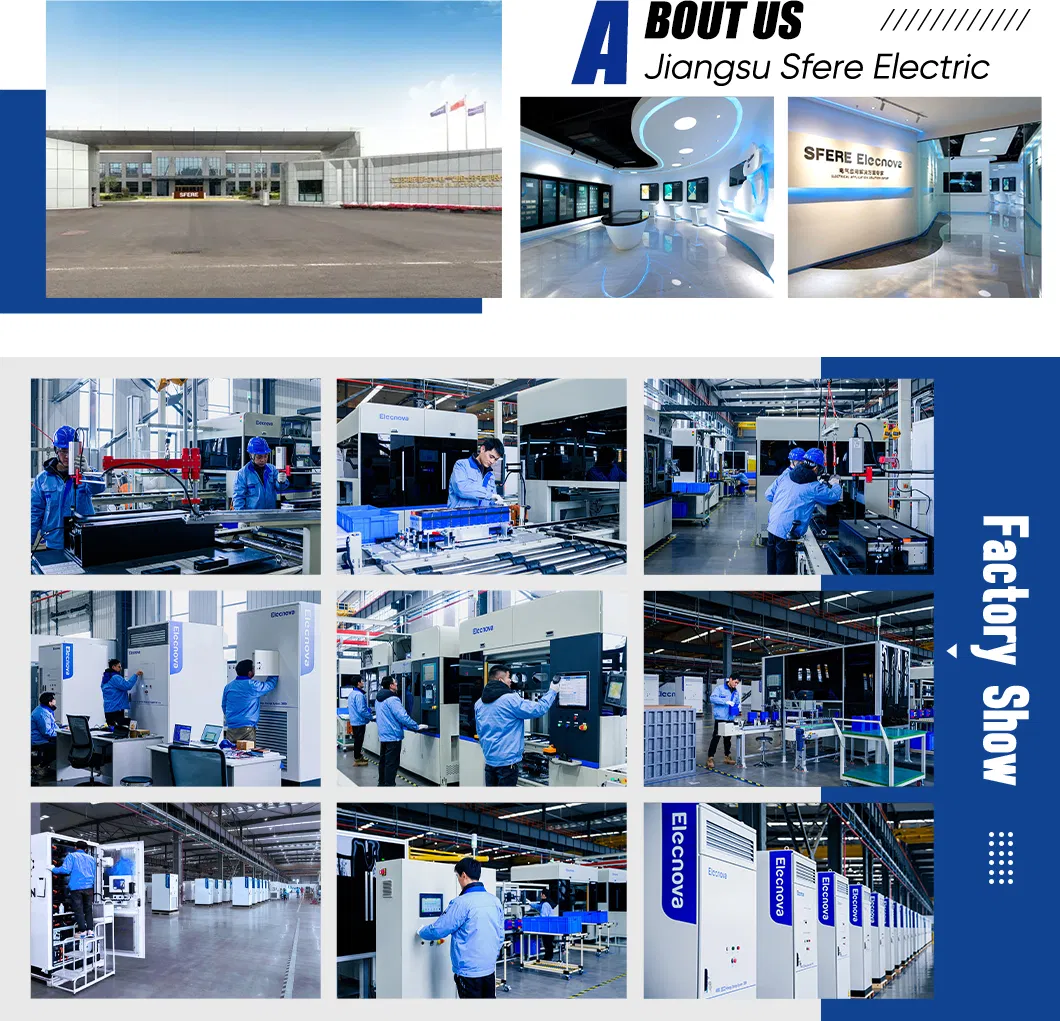

R&D Manufacturing
The company integrates R&D, manufacturing, sales and service, and has a complete product ecosystem from smart terminal components, smart equipment to the Internet of Things platform. The company's electrical application solutions empower users with intelligent and digital energy management, and provide reliable data services for users' energy saving and consumption reduction, energy safety and refined energy management.
We mainly have three series of products, namely power monitoring systems, power quality mitigation products, electrical component products and energy storage system, which are derived from abundant technology accumulation capability and have laid a solid foundation for its leading position in the industry.
Energy Solutions
Certifications & Global Presence
Certificates
Exhibition
Packaging and Shipping
Frequently Asked Questions
Are you a trading company or a manufacturer?
We are a manufacturer. Our manufacturing center is supported by over 600 employees, including 3 R&D centers and a CNAS certified laboratory.
Can you provide OEM & ODM services?
Yes, we welcome long-term strategic business partners for both OEM and ODM project implementation.
How are the battery products shipped internationally?
Our battery products have obtained the UN38.3 certification, ensuring they are safe and compliant for international sea shipment.
What is the standard warranty period?
We provide flexible warranty options of 3, 5, or 10 years depending on the specific product requirements and conditions.
How is after-sales service handled globally?
We maintain overseas affiliates and business partners worldwide to provide professional on-site maintenance and support.
Can I request a product sample?
Yes, please provide your contact details and our dedicated sales team will get in touch with you shortly to arrange a sample.
