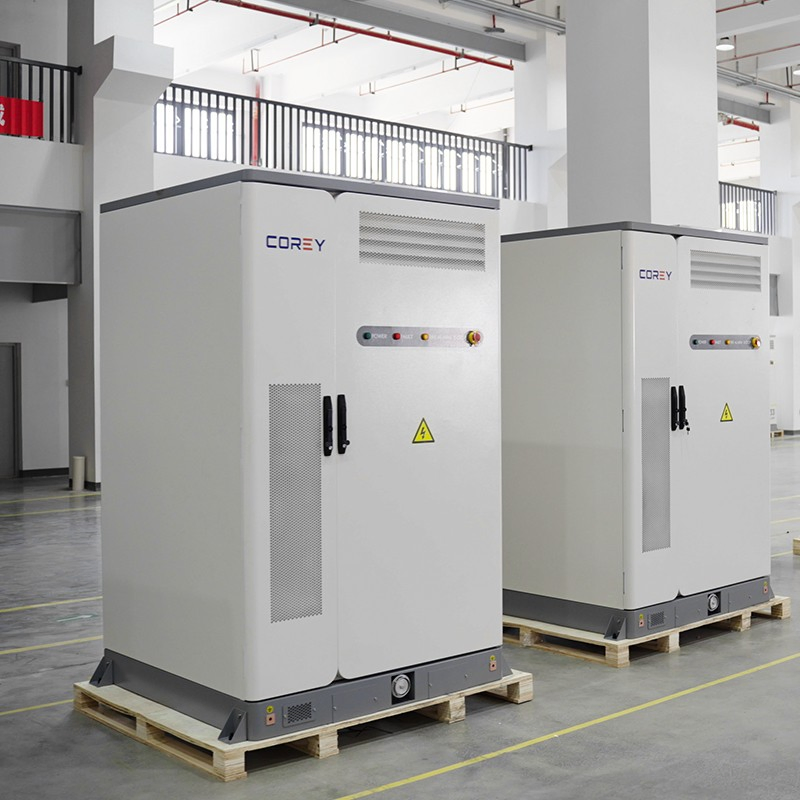

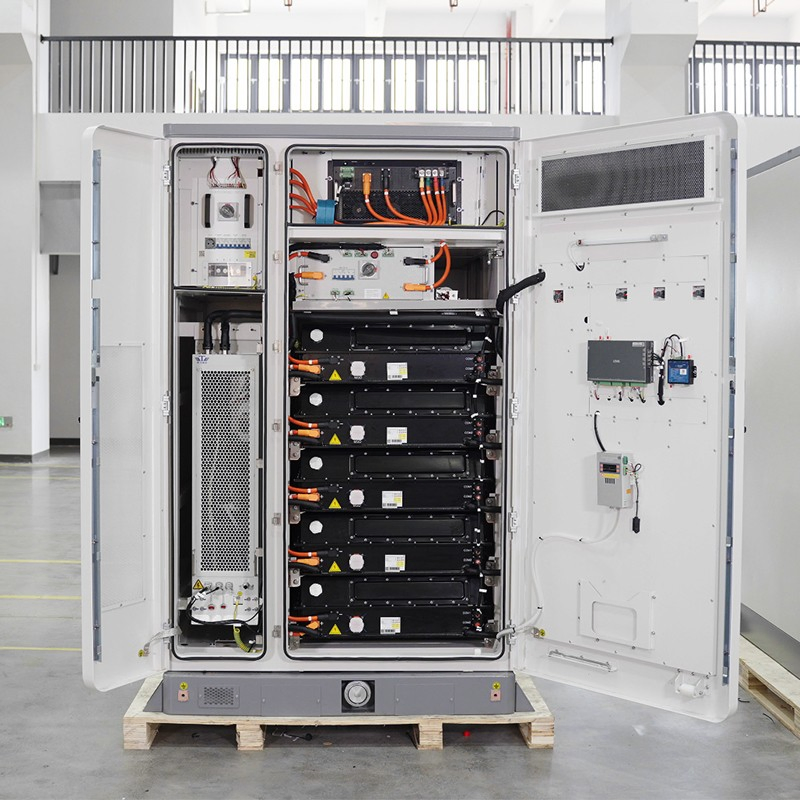

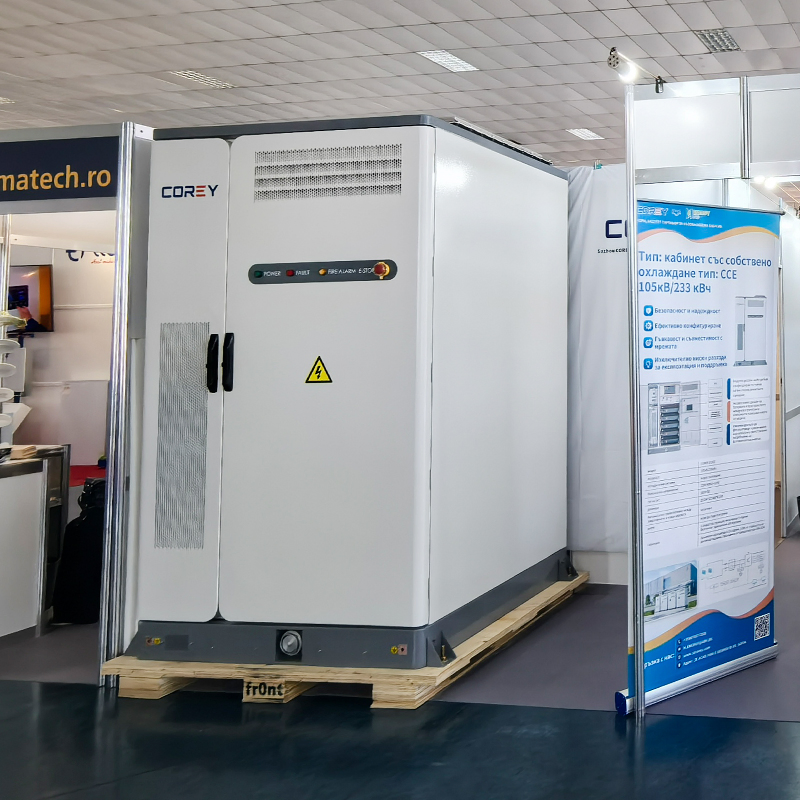

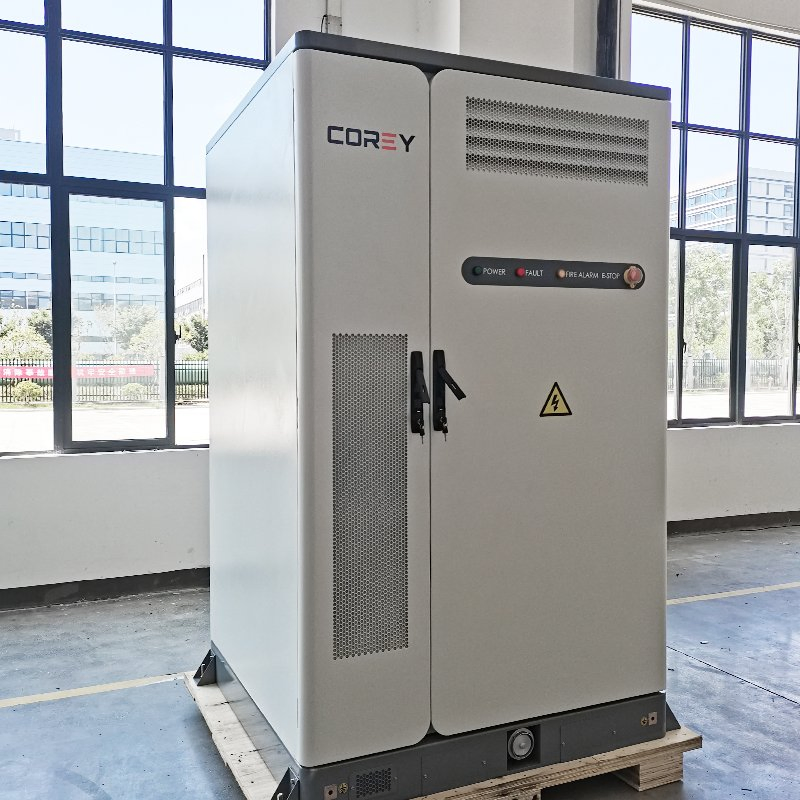

Container Battery 215kwh 233kwh 105kw Lithium Ion Batteries Pack Electricity Storage
Container Battery 215kwh 233kwh 105kw Lithium Ion Batteries Pack Electricity Storage
Container Battery 215kwh 233kwh 105kw Lithium Ion Batteries Pack Electricity Storage
Container Battery 215kwh 233kwh 105kw Lithium Ion Batteries Pack Electricity Storage
Container Battery 215kwh 233kwh 105kw Lithium Ion Batteries Pack Electricity Storage
1 / 5
Container Battery 215kwh 233kwh 105kw Lithium Ion Batteries Pack Electricity Storage
Container Battery 215kwh 233kwh 105kw Lithium Ion Batteries Pack Electricity Storage
Container Battery 215kwh 233kwh 105kw Lithium Ion Batteries Pack Electricity Storage
Container Battery 215kwh 233kwh 105kw Lithium Ion Batteries Pack Electricity Storage
Container Battery 215kwh 233kwh 105kw Lithium Ion Batteries Pack Electricity Storage

Container Battery 215kwh 233kwh 105kw Lithium Ion Batteries Pack Electricity Storage

Customization: Available
Container Size: L1560mm*D1380mm*H2385mm
Weight: 2600kg
Send Inquiry

Product Description

i

Basic Specification Overview

Model
Corey-233
Nominal Voltage
230V/400V
Warranty
5 Years
Nominal Capacity
233kWh
Cycle Life
9000 Cycles
Battery Type
LiFePO4
Grid Connection
Hybrid Grid
Communication
Can/RS485/Ethernet/4G
Cooling Method
Intelligent Liquid Cooling
Protection Level
IP54
Discharge Depth
95% DoD
Rated Frequency
50/60 Hz
Energy Storage System
★

Core Advantages & Revenue Model

  • Peak-Valley Arbitrage: Charge during low-cost valley periods and discharge during high-cost peak periods to significantly cut electricity expenses.
  • Power Supply Reliability: Functions as a backup power source during grid outages, ensuring uninterrupted operations for industrial facilities.
  • Power Quality Improvement: Mitigates load fluctuations and minimizes voltage deviations for stable electrical equipment operation.
  • Demand Response: Participate in grid requirements to earn financial incentives and optimize usage patterns.
Arbitrage Data

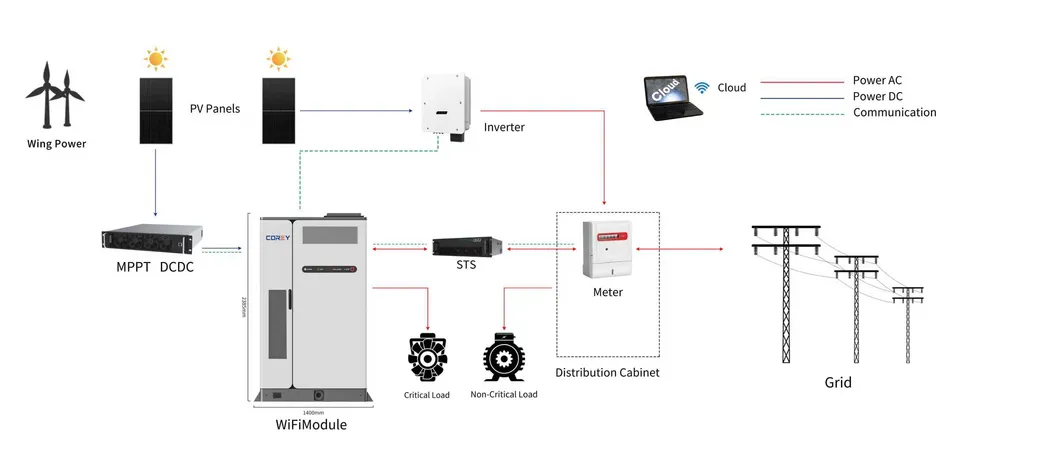

Storage Reliability
📊

Actual Case Analysis

Based on time-of-use electricity prices in Germany (June 2025), with a price differential of 0.238 euros per kWh:

Total Investment: ~32,600 Euros | Annual Net Income: 7,447 Euros

Static Payback Period: Approximately 4.4 Years

⚙

Technical Parameters

Category Parameter Numerical Value
System ParameterBattery CellLFP(LiFePO4) 3.2V 280Ah
System Capacity233kWh
Rated Power105kW
Cooling MethodIntelligent Liquid Cooling
AC SideRated Voltage230V/400V(±15%)
Rated Frequency50/60 Hz
Maximum Current167A
Switching Time20ms (Optional)
DC SideRated Voltage832V
Voltage Range728~936V
Discharge Depth95% DOD
SafetyFire FightingAerosol + Water Fire Protection
🏢

Applications

Perfectly suited for factory buildings, commercial centers, remote areas with power shortages, and microgrid integration.

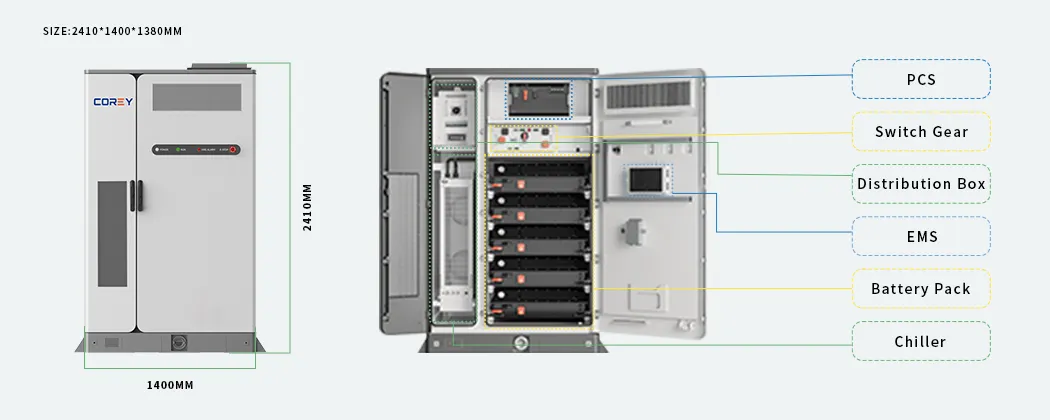

Industrial Application

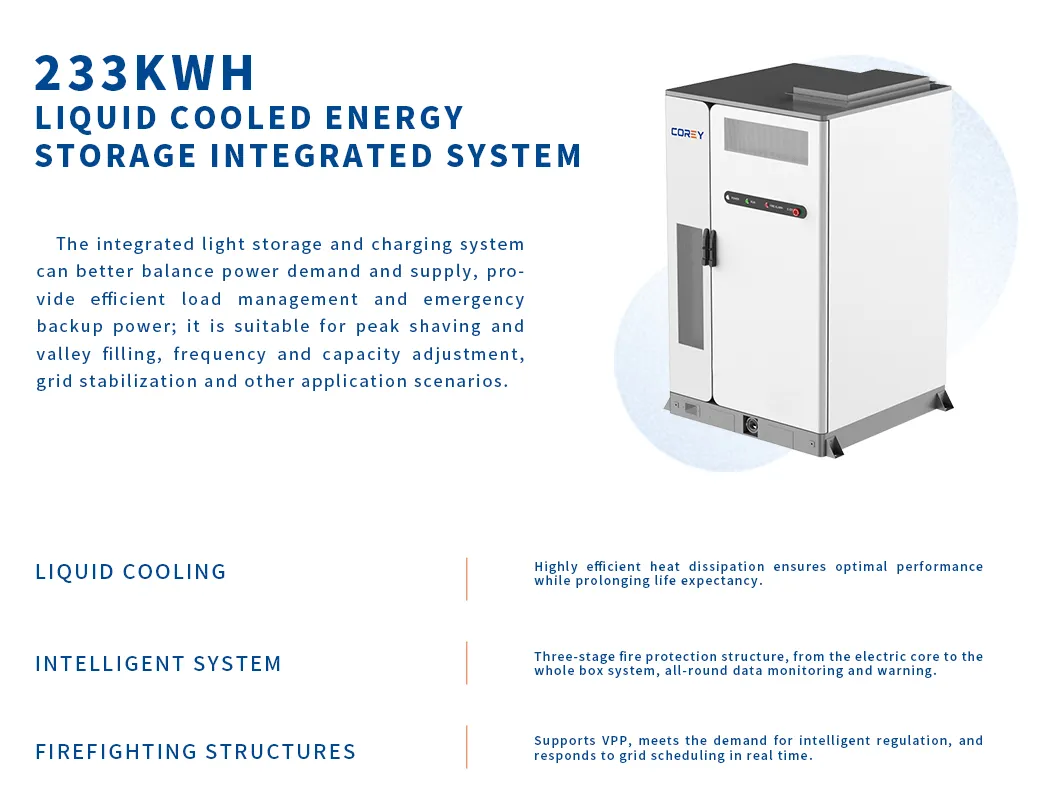

Commercial Case

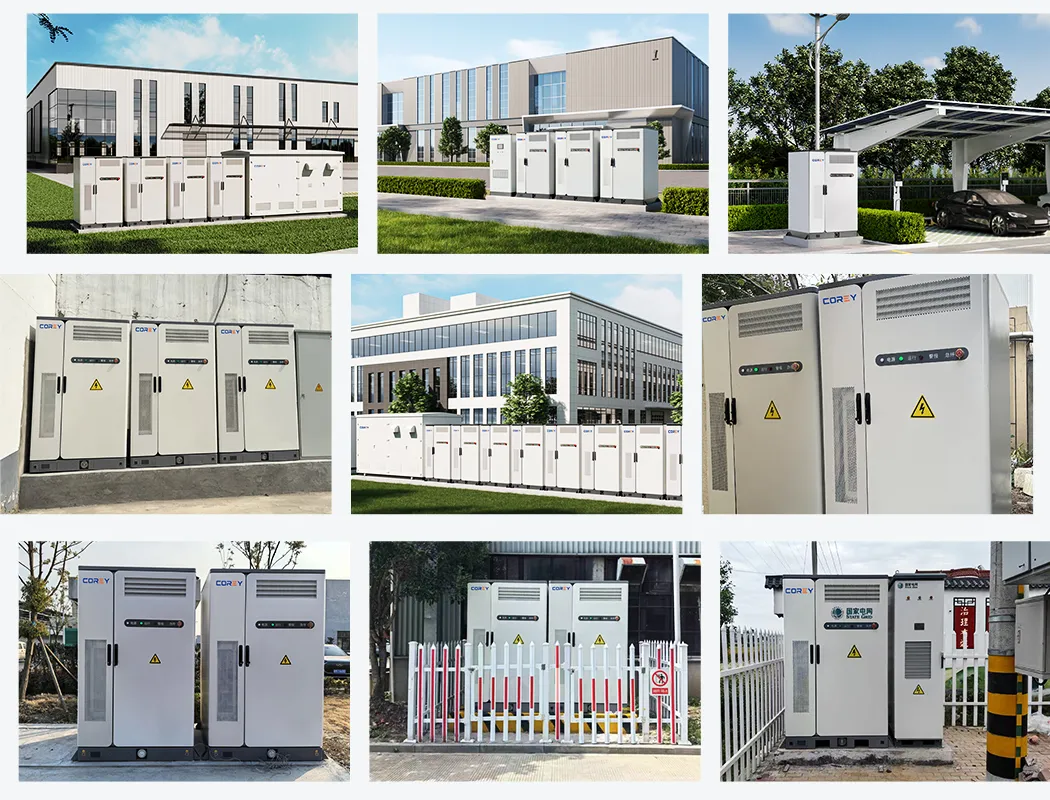

Project Project
🛡

Professional Manufacturing

Specializing in automated intelligent equipment and laser welding technologies for lithium battery modules, our solutions provide high-intelligence manufacturing for global energy storage integration. We are committed to promoting clean energy transformation and building zero-carbon power systems through stable, safe, and clean power solutions.

Manufacturing 1
Manufacturing 2
Quality Control
Certification
?

Frequently Asked Questions

1. What is the total storage capacity of this system? The system provides a nominal capacity of 233kWh with a rated power of 105kW.
2. How does the cooling system work? It utilizes an intelligent liquid cooling method to maintain optimal battery temperatures and extend system life.
3. What is the expected cycle life of the LiFePO4 batteries? The system is designed for a long cycle life of up to 9000 cycles at 95% depth of discharge (DoD).
4. What safety protections are included? The system features IP54 protection, C4 anti-corrosion level, and a multi-level fire protection system including aerosol and water-based firefighting.
5. Can this system work off-grid? Yes, it supports grid-connected and off-grid switching, with an optional automatic switching time of less than 20ms.
6. What is the typical return on investment? Based on specific market data like Germany, a static payback period of approximately 4.4 years can be achieved through peak-valley arbitrage.
