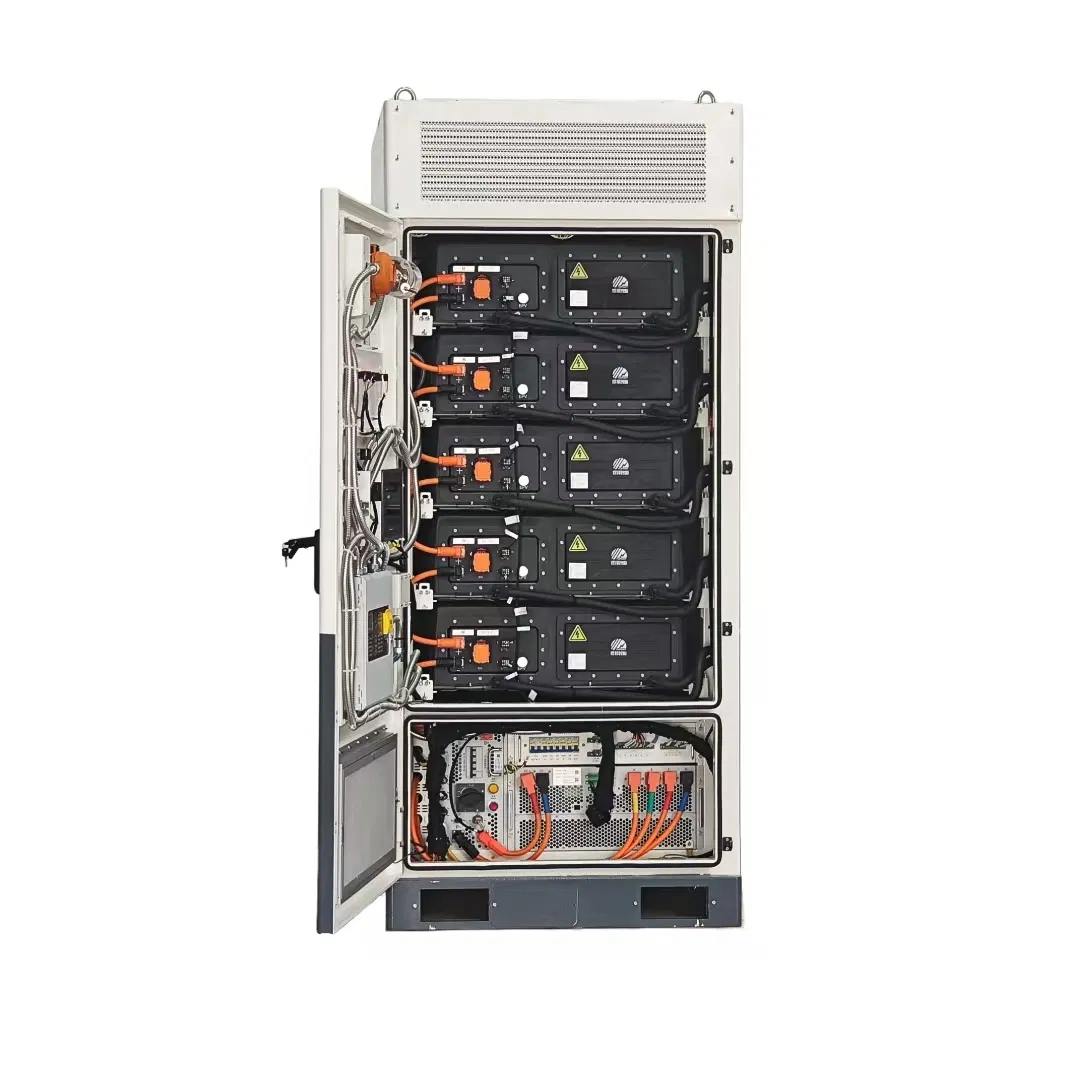

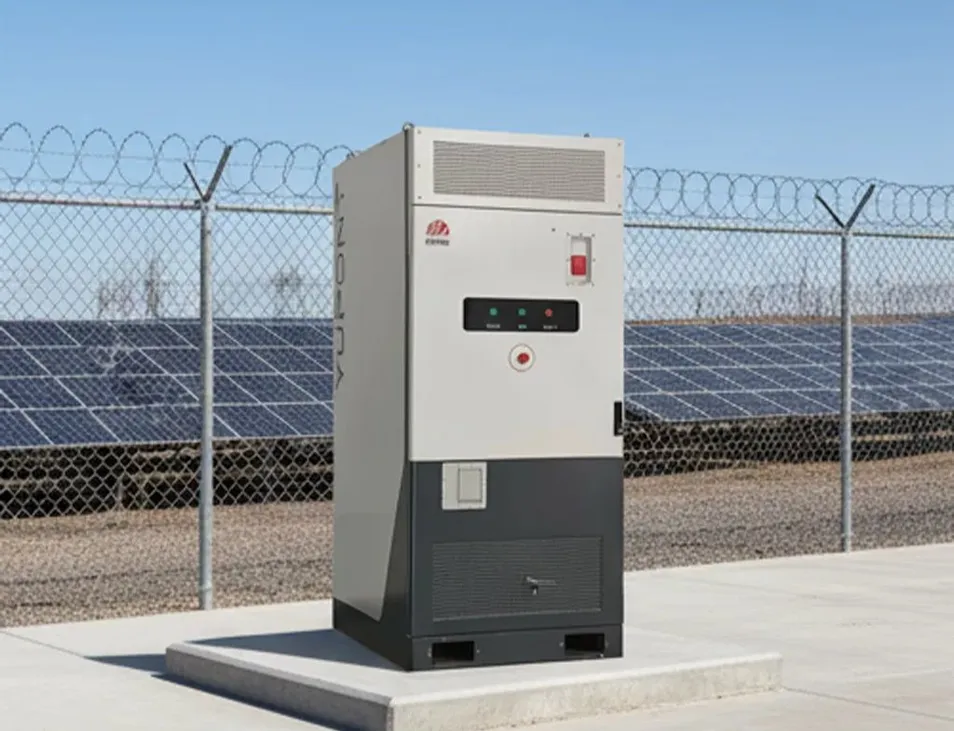

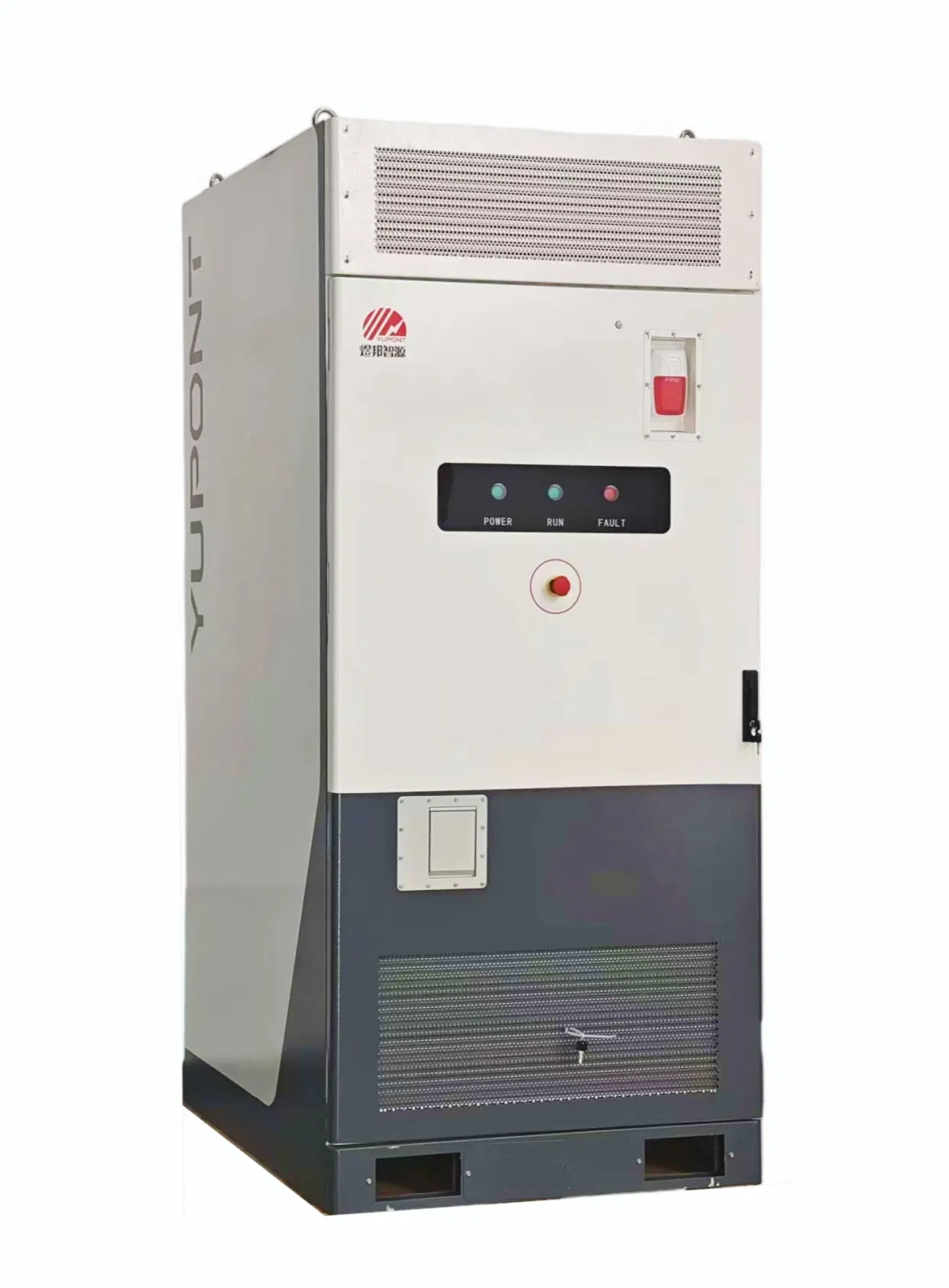

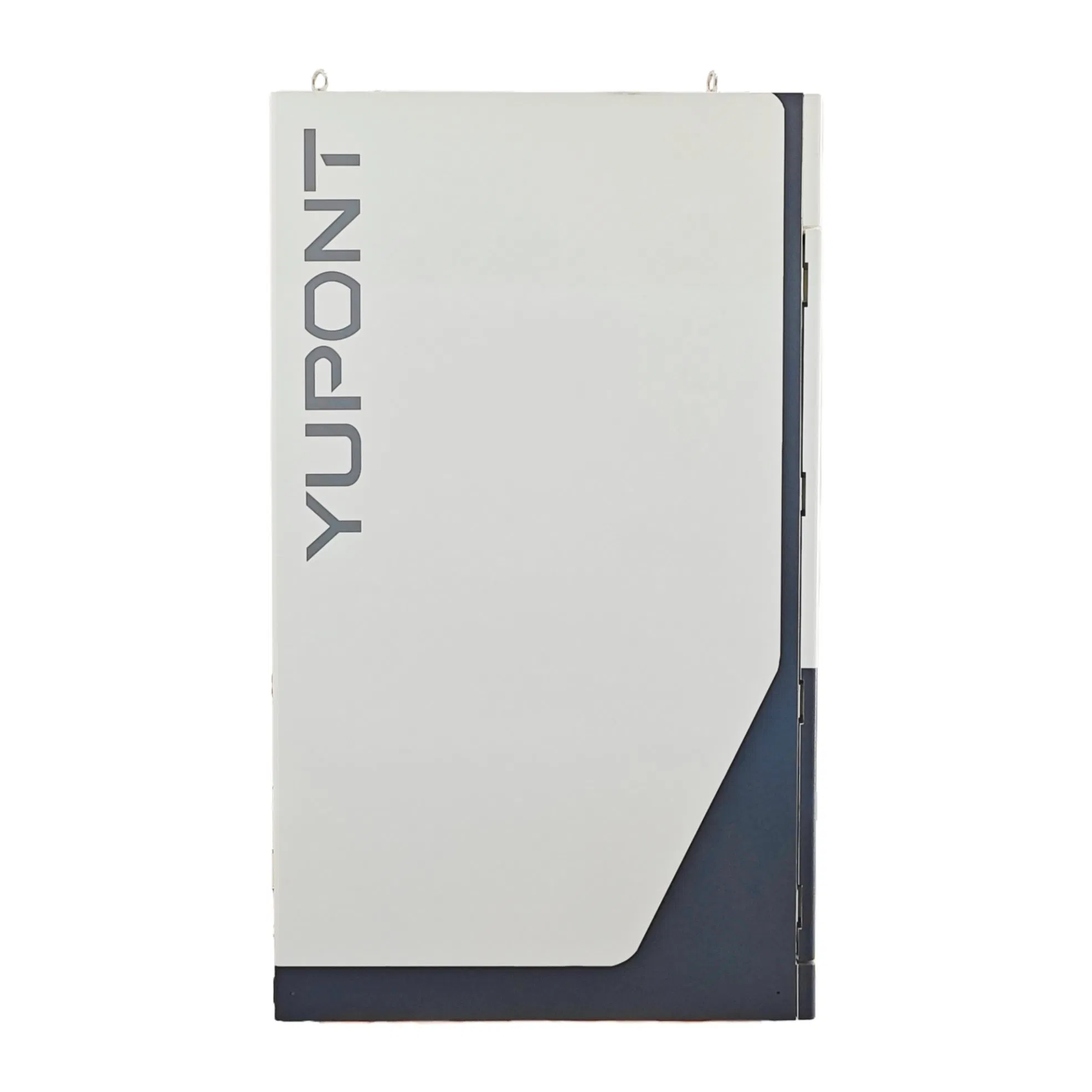

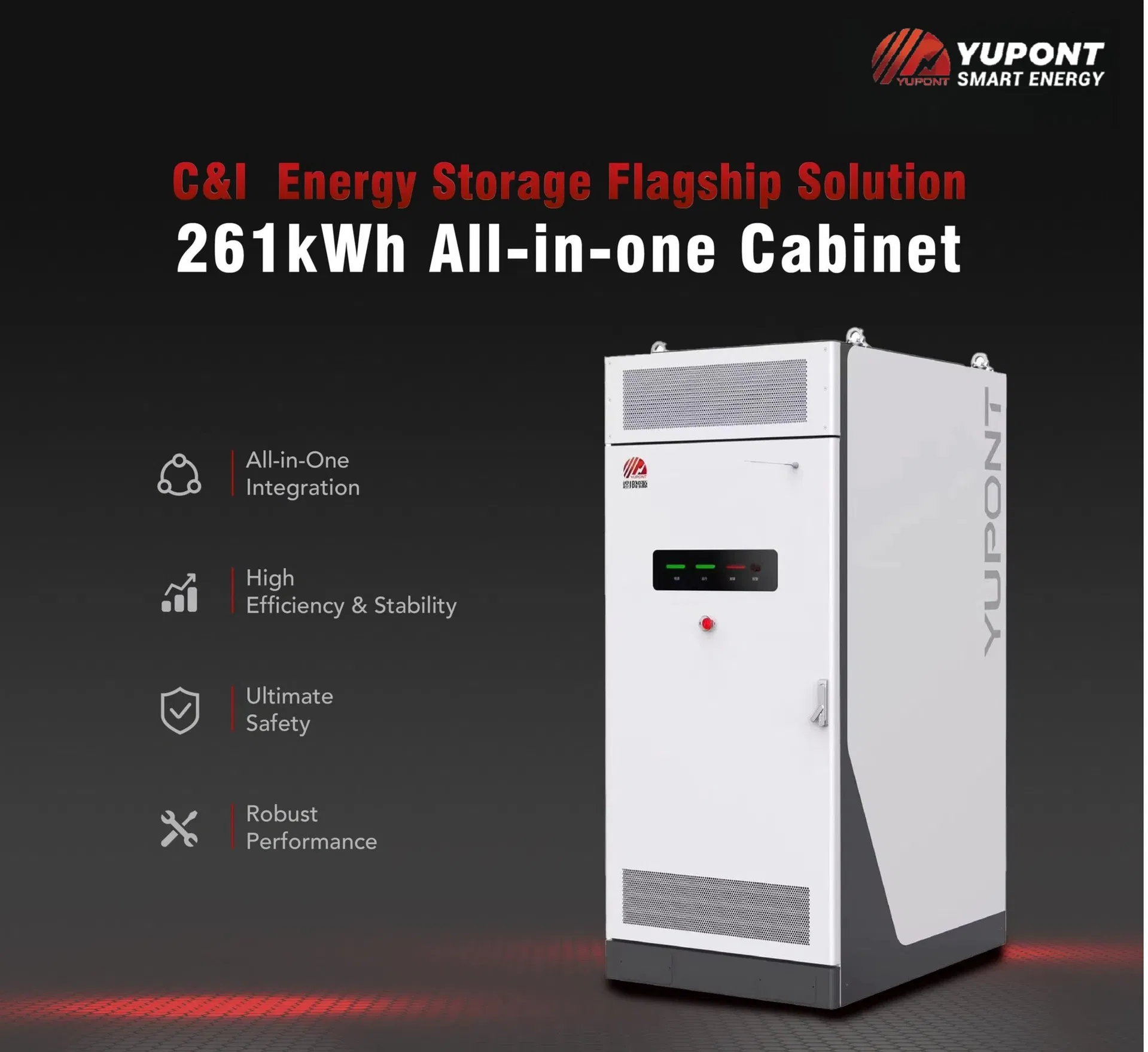

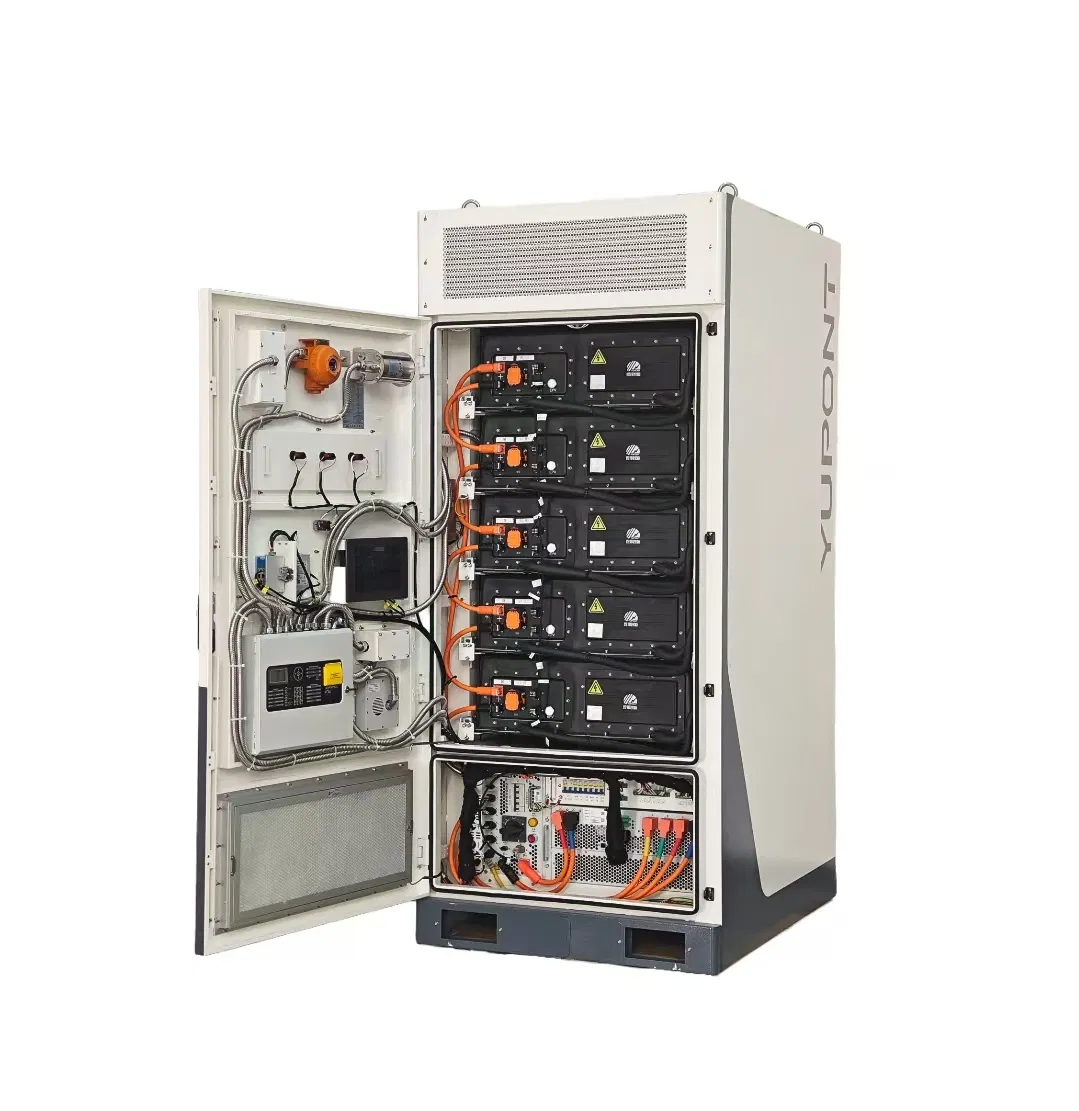

The 261kWh C&I All-in-One Cabinet has obtained international CE certification. Featuring a highly integrated design with a footprint of only 1.3 m³, it offers simplified installation and efficient after-sales maintenance, engineered specifically for commercial and industrial energy storage scenarios.
All-in-One Integration: Deeply integrated AC/DC systems, liquid cooling thermal management, fire protection and BMS.
Ultimate Safety: LFP battery cells + intelligent BMS + eco-friendly fire protection.
High Efficiency & Stability: 125kW rated power | Intelligent monitoring powered by big data algorithms.
Robust Performance: Advanced liquid cooling ensures uniform temperature distribution and extended cycle life.
(Custom configurations available upon request.)
| Model | 125kW/261kWh C&I Liquid Cooling Energy Storage Cabinet |
| Module Configuration | 26.1248kWh/1P26S |

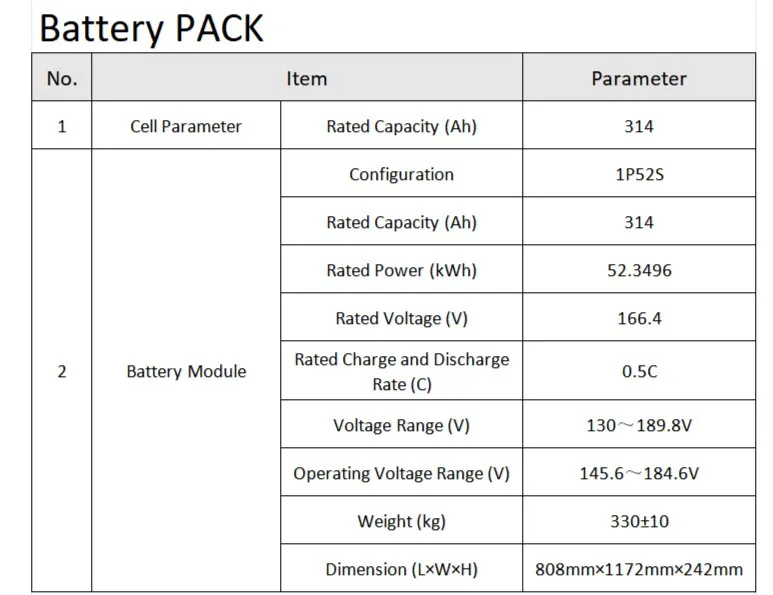

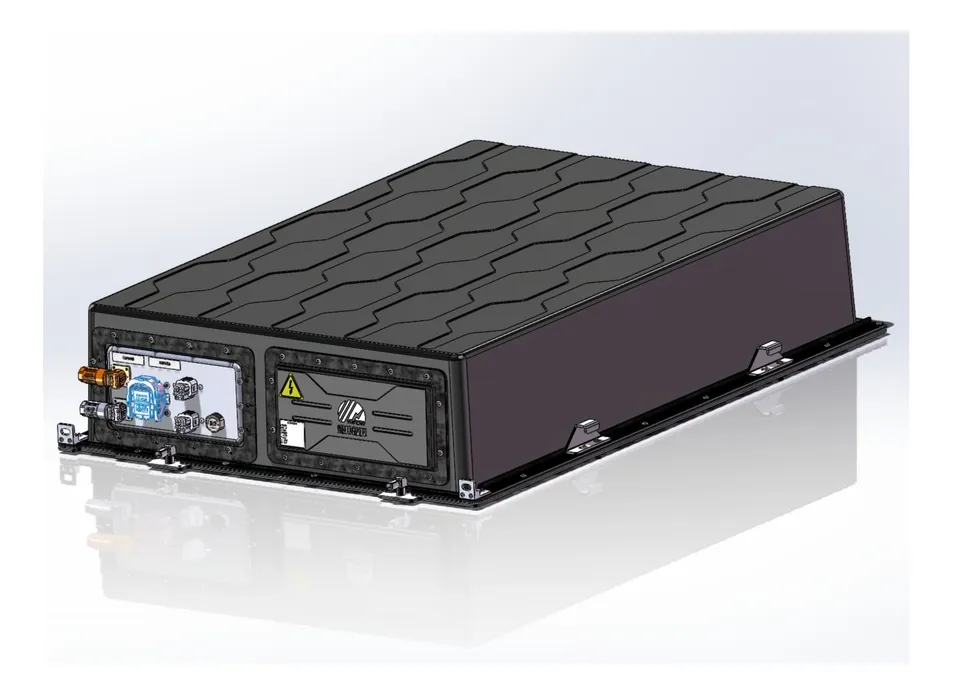

| PACK Configuration | 52.249kWh/1P52S |
| System Configuration | 261.248kWh/1P260s |
| Allowed Grid Voltage(VAC) | 380/400(-15%~15%) |
| Depth of Discharge | 90%DOD |
| Off-grid Mode | Support |
Convenient and Flexible: High power density design, modular easily scalable, and easy to relocate.
Safe and Reliable: Intelligent Control with early system fault warning; Single-cluster precise control.
Cost-effective: High-efficiency full liquid cooling with system circulation efficiency over 90%.
Intelligent Maintenance: 3S system collaborative control with millisecond-level response.

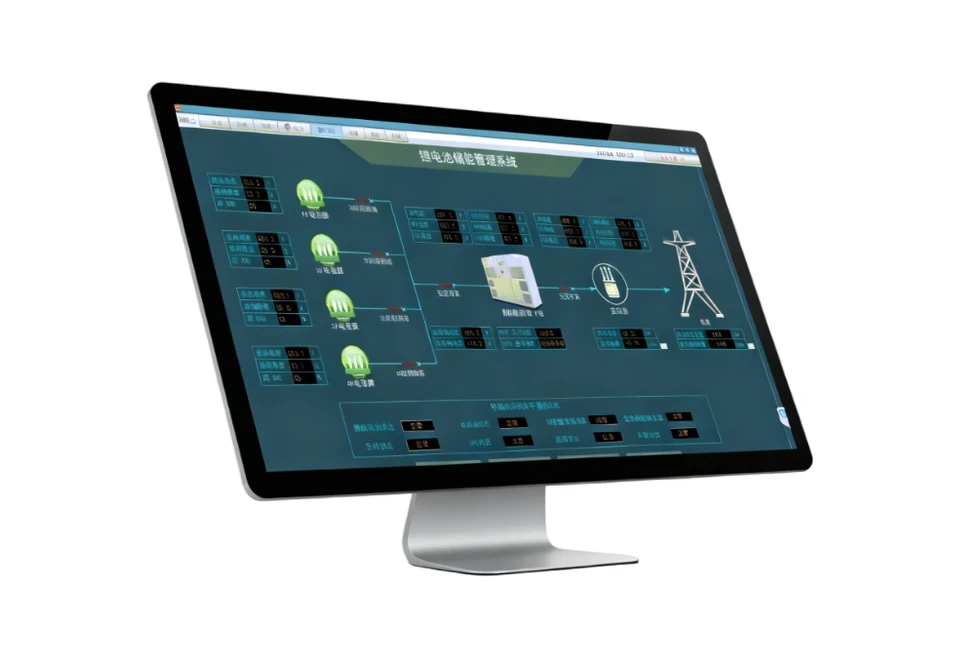

Coordinates battery clusters and PCS, enabling charge-discharge management, data monitoring, and system safety control to ensure stable, efficient grid integration.

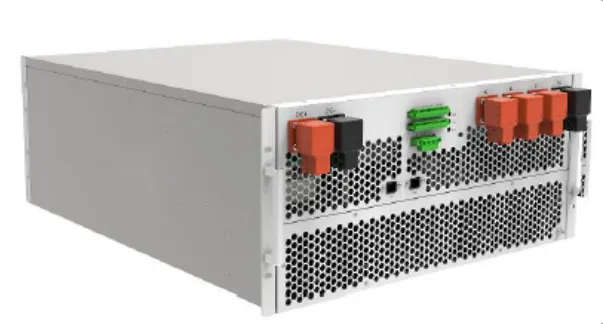

Enables bidirectional AC/DC conversion and energy flow, supporting charging/discharging and grid-connected/off-grid switching with precise regulation.
Standard Warranty: 36 months or 2,000 operating hours. Detailed CAD drawings and tailored designs are available upon inquiry to meet specific project requirements.

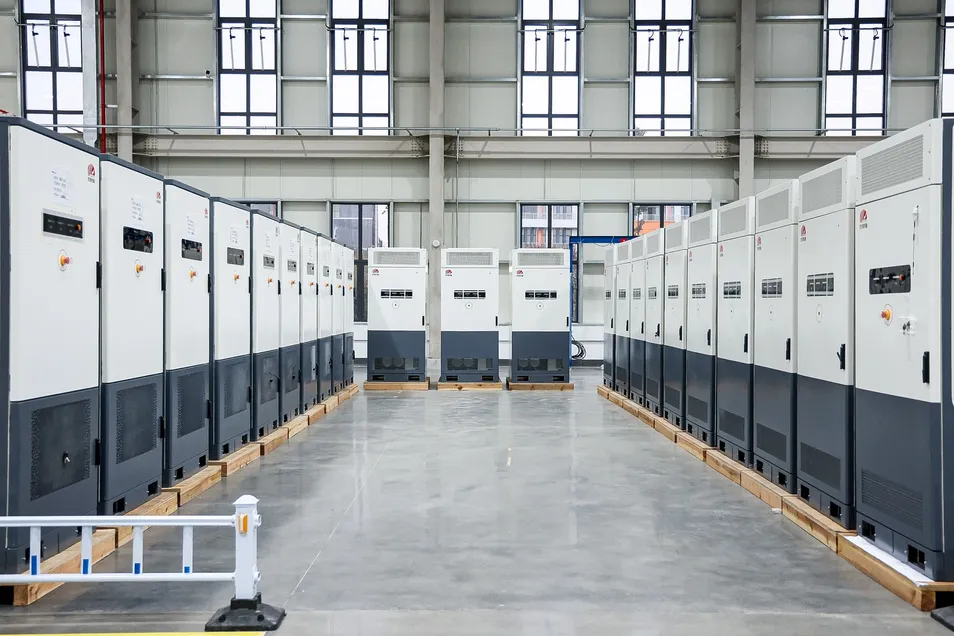

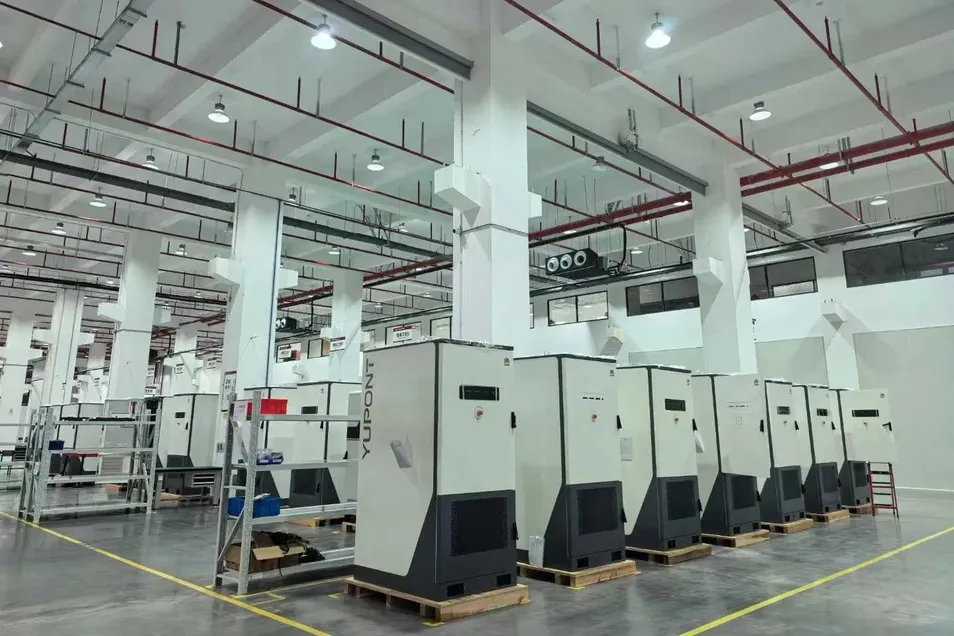

Specializing in the R&D, manufacturing and sales of equipment for grid-side large-scale energy storage and industrial/commercial distributed energy storage. We have established a standardized, regulated and efficient business system.
